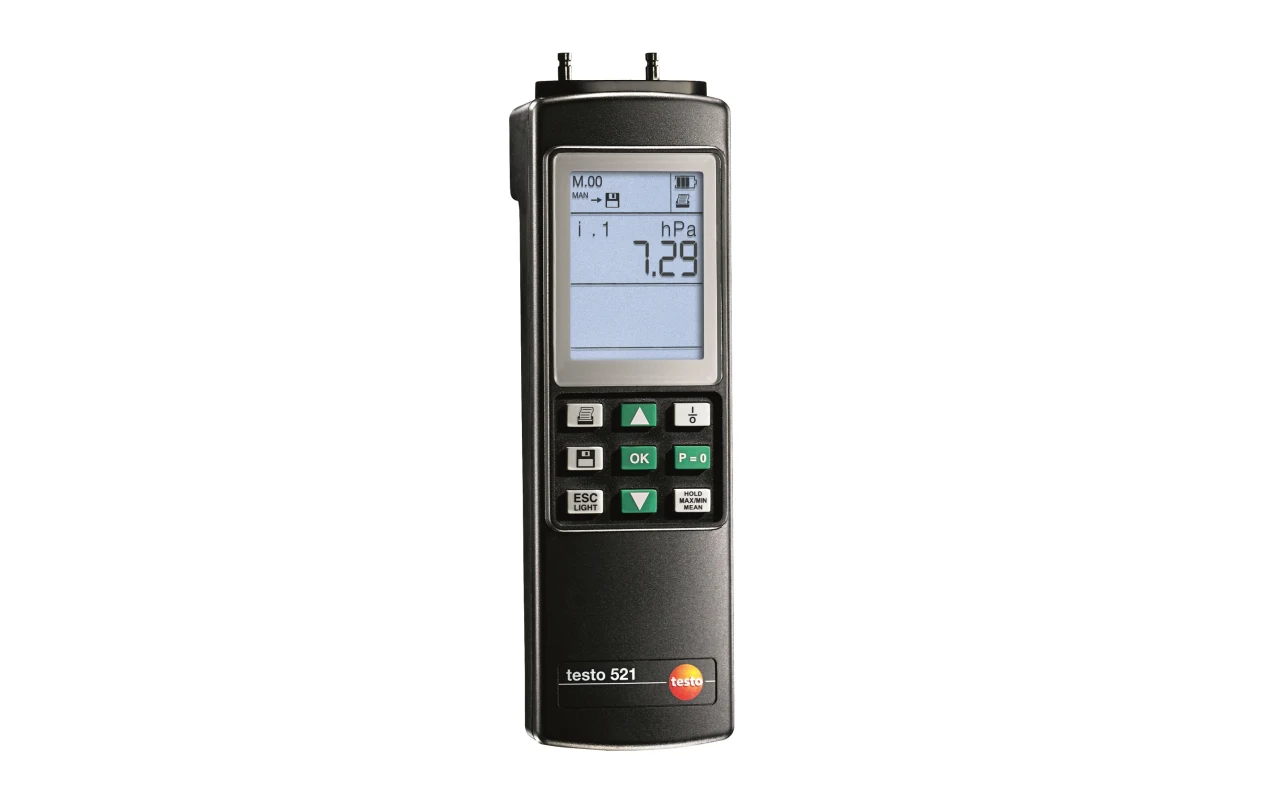

testo 521-1 – differential pressure measuring instrument (0.2% of f.v.)

Description

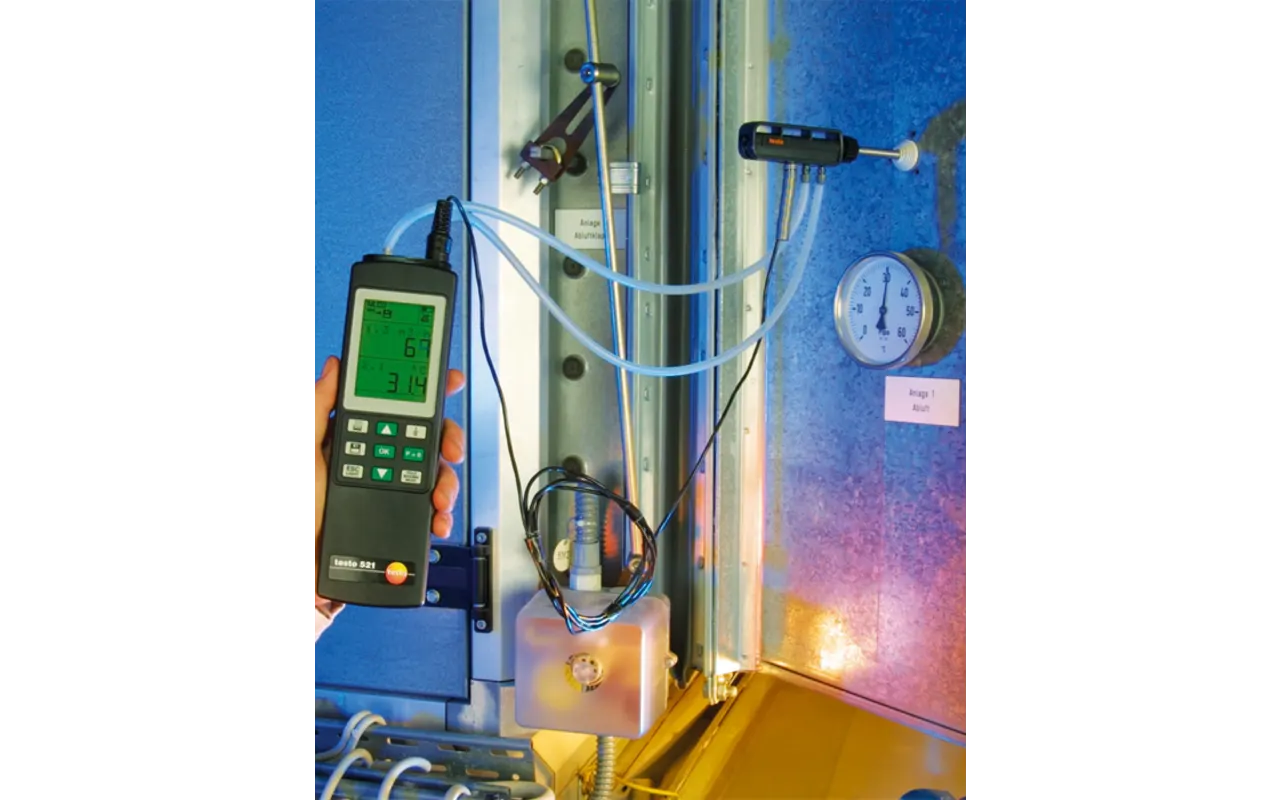

testo 521-1/-2/-3 are highly accurate differential pressure measuring instruments with an internal sensor. The versionstesto 521-1 and testo 521-2 both have ameasuring range from 0 to 100 hPa, however they are available in two accuracy classes: – testo 521-1: accuracy 0.2 % of final value – testo 521-2: accuracy 0.1 % of final value testo 521-1 and testo 521-2 are optimally suited to checks on extraction systems and ventilators and for the monitoring of pressure drop at filters

Features
  • Temperature-compensated differential pressure sensor in instrument
  • Additional 2 probe inputs for the connection of further probes for the measurement of pressure and temperature
  • Direct calculation of flow velocity and volume flow
  • Direct zeroing of display value from pressure probes
  • Display of Hold-, max. and min. values
  • Easy data storage by measurement site as well as analysis, archiving and documentation via optional PC software
  • Point and timed mean value calculation

Industry Use: Climate

Order No: 0560 5210
